Overview

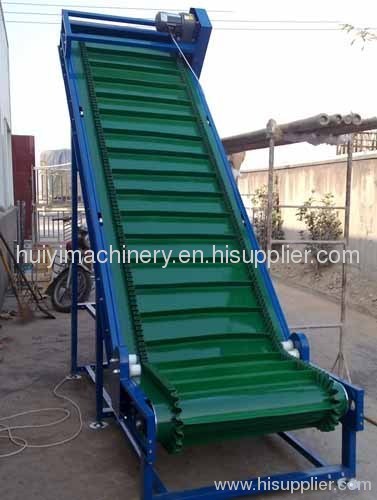

The structure of retaining plate belt conveyor is in the parallel belt equipped parallel diaphragm within a certain distance which forms the box-shaped bucket with the rids connected to the rack. The material convey continuously in it. The conveyor can be widely used in coal, food, building materials, chemical industry, hydropower and mining and other industries, and usually used for transporting bags, unit, block, and a variety of bulk materials. Under the environmental temperature -19~+40degree,the conveyor can operation regularly. when conveying materials with special requirements, such as high temperature, acid, alkali, oil-like substance or composition material with organic solvents choose the special sidewall conveyor belt. The conveying angle keep 0 °-90 °.

Application
The conveyor can be widely used in coal, food, building materials, chemical industry, hydropower and mining and other industries, and usually used for transporting bags, unit, block, and a variety of bulk materials. Under the environmental temperature -19~+40degree,the conveyor can operation regularly. when conveying materials with special requirements, such as high temperature, acid, alkali, oil-like substance or composition material with organic solvents choose the special sidewall conveyor belt. The conveying angle keep 0 °-90 °.

Operation and principle
The retaining plate belt conveyor is constituted by the flat rubber conveyor Gluing on the skirts of the free expansion on both sides ,with some cartridge-shaped buckets Consisting of the diaphragms with a certain strength and elasticity between the skirts which allowing the materials to transport continuously in it.

Structure and composition
1.wave - shaped sidewall conveyor belt      2.drive machine               3.driving pulley        4.bend pulley:
5.wheel for pressing the belt.                     6 .support roller              7.support roller         8. vertical roll
9.flap wheel cleaning device                      10.the effect of the tension device
11.rack, head hopper, the head guard, guide material tank, middle, middle leg, etc

Characteristic:
1.Saving the floor space required, saving investment
2.high capacity ,strong versatility
3.The angle of the conveyor is 0-90 degree
4.Easy operate and maintenance
5.Wide application: mining ,grain ,building material industries, chemical industry, hydropower    industry, metallurgy and other industries .
